How to Use Pulumi with C# – Projects, Stacks, Config

This post is part of a series on using Pulumi:

1. 1. Infrastructure as code (IaC) – what it is and why to use it
   2. How to use Pulumi with C# – Our first project
   3. How to use Pulumi with C# – How Pulumi Works
   4. How to use Pulumi with C# – Inputs and Outputs
   5. How to use Pulumi with C# – Component Resources
   6. How to Use Pulumi with C# – Projects, Stacks, Config
   7. How to use Pulumi with C# – Stack References

Overview

Our Pulumi program is in a pretty nice spot now! We have a modular component resource we can use wherever we want, our actual business app is in the same .NET solution as our Pulumi app, and our Pulumi app even runs a dotnet publish on the business app for us.

However, there’s still something rather important we’ve not covered so far – how to deploy the same Pulumi program to different environments! Almost every application will need this requirement so that you can safely deploy the same infrastructure to dev, staging, prod, etc., while also being able to tweak some of the configuration values.

So, this post will take a look at how to deploy the same Pulumi program to another Azure account or region, as well as how to tweak some of the values per environment. We’ll discuss Pulmi projects and stacks to do this.

Creating a staging stack

To begin, we’ll take our Pulumi app and make sure it gets deployed to a second region in Azure. To do this, we’re going to create a new Pulumi stack.

We’ll go over what that means shortly, but first, run pulumi stack init staging. This will create a stack in your Pulumi project called staging.

You can run pulumi stack ls to view the stacks in your project:

NAME      LAST UPDATE  RESOURCE COUNT  URL
dev       2 weeks ago  19              https://app.pulumi.com/danielwarddev/PulumiCSharp.Infrastructure/dev
staging*  n/a          n/a             https://app.pulumi.com/danielwarddev/PulumiCSharp.Infrastructure/staging

We already had one stack called dev. Pulumi created this stack for us when we created a new Pulumi project. Our new staging stack is also there, but we still need to create a new config file for it.

You can create one just how you would a normal file, but it might be easier to instead run pulumi config set myKey myValue. This inserts this value into the config file for the current stack, but it also creates the config file first if it doesn’t already exist. Once you run it, indeed, you’ll see a new Pulumi.staging.yaml file!

That being said, all we want to do is copy-paste the contents from the dev config into this config. The only value we want to change is azure-native:location. My dev stack’s region was WestUS, so I’m going to set my staging stack’s region to CentralUS, just to be something different.

Using the new Azure location

We have our new stack and its config now, but how does our code use it?

At least for the case of azure-native:location, we don’t actually have to do anything! As we can see from the Pulumi docs, Pulumi automatically attempts to discover some Azure settings itself if they weren’t given explicitly, and the Azure location is one of those. Before, we indeed didn’t provide the location explicitly – Pulumi was able to work by getting the Azure location from our CLI authentication. That’s also why we didn’t have to set the Location property on any of the resources we created. If the value is in the stack config, though, it will use that.

That’s not very exciting, however, since we wouldn’t actually get to use a config value in our C# code! Instead, let’s create a custom config setting to change how many Functions are created depending on the stack.

Using Pulumi config values in code

Run pulumi config set function-count 2, then open up your Pulumi.staging.yaml file and change the value to an int by changing "2" to 2 (unfortunately, pulumi config set seems to always set values as strings). Add this value to Pulumi.dev.yaml, as well, but instead give it a value of 1.

Also, pulumi config set doesn’t do anything special, and you can edit the files by hand if you prefer for the same result.

We can then access our stack config by instantiating a Config object. We’ll also loop through the count variable. Here’s how to do that:

// Change your AzureFunctionApp creation to this code
var config = new Pulumi.Config();
var functionCount = config.RequireInt32("function-count");
var functionApps = new List<AzureFunctionApp>();

for (int i = 0; i < functionCount; i++)
{
    var app = new AzureFunctionApp($"cool-function-{i + 1}", new()
    {
        ResourceGroupName = resourceGroup.Name,
        StorageAccountName = storageAccount.Name,
        FunctionName = "MyCoolFunction",
        PublishPath = "../PulumiCSharp.ConsoleApp/publish",
        DotNetVersion = DotNetVersion.V8
    });
    functionApps.Add(app);
}

return functionApps.ToDictionary(
    app => $"{app.GetResourceName()}-api-url",
    app => (object?)app.ApiUrl
);

The RequireInt32() function looks for an integer value with the specified key from the config. Like the name implies, it will throw an error if it doesn’t find that value from the config.

Two things that are worth noting about Pulumi configs that we won’t be using here: firstly, there are other methods for getting config values besides integers, like RequireBool() and RequireString(). There’s also methods for getting optional config values, which start with Get instead of Require, eg. GetBool() and GetInt32().

Secondly, if you want to get a config value out of a certain section of the config, you must make a separate Config object for the section itself. For instance, if you wanted to get the Azure location, you would create a Config object like var azureConfig = new Config("azure-native"), then call methods on that object to get values from that config section.

Deploying the new stack

Let’s redeploy our stacks to see the changes. I’m also going to destroy both my stacks so I can see the differences in the full runs when using the new config value. Altogether, here’s the commands I’m running in order:

1. 1. pulumi stack select dev && pulumi destroy
   2. pulumi up --skip-preview
   3. pulumi stack select staging && pulumi up --skip-preview

I’ll spare you the Pulumi output, but you should see that the dev stack created one AzureFunctionApp, while the staging stack created two. They’re also in different subscriptions and regions, although the Pulumi output doesn’t give this information.

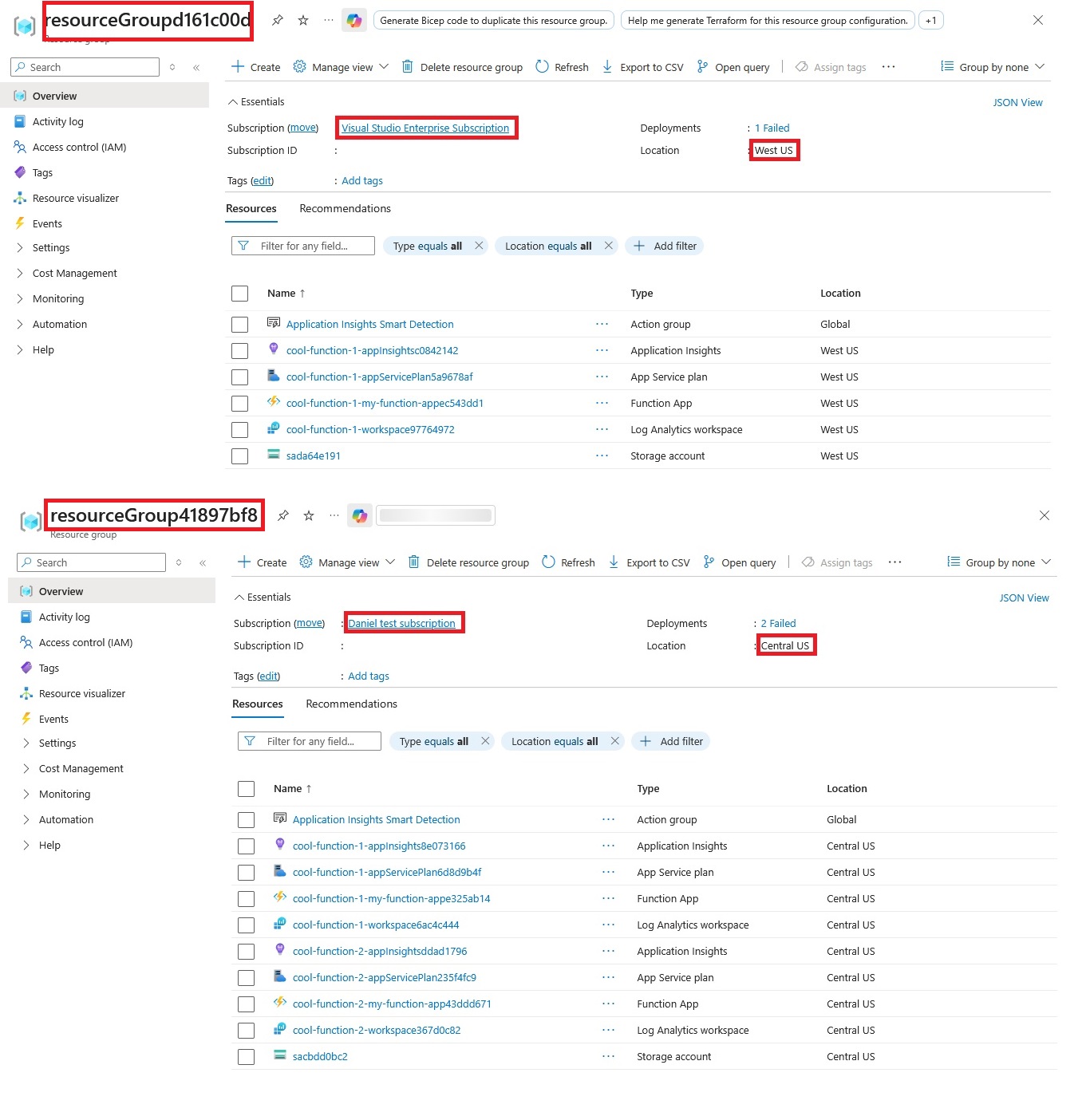

Let’s take a glance in the Azure Portal to verify what things look like:

Success! We have two different resource groups, both in a different subscription and region. Also, the first resource group has one Function App, while the second resource group has two, just like we configured.

Also, although this series won’t cover it, you can also define schemas for your Pulumi config and set default values at the project level. If you’re interested, check out their post on that!

What’s a stack? What’s a project?

So, what exactly did we just do? What’s a “stack” in Pulumi?

The top level of your Pulumi app is called your “project.” Your Pulumi project is wherever your Pulumi.yaml file is, which is the config for the whole project. There’s nothing stopping you from having multiple projects in different directories, either, but you probably want to have some kind of logical separation between them for the sake of organization. Our small example app isn’t nearly complicated enough for multiple projects, so we’ll just stick with our one.

A project contains many “stacks.” Up until now, we’ve only had the one stack called “dev,” and we just created a second one for staging. Like we just saw in our example, a stack is simply a deployable instance of your Pulumi program. Each stack also has its own configuration.

Stacks are configurable, so it’s common to use stacks to have separate instances of your program per environment, such as dev, staging, and prod. The config file for a stack is Pulumi.<stackName>.yaml. You may also choose to create new stacks for logical reasons, similar to how you divide your business logic up by classes. For instance, you might have a logging stack, a monitoring stack, or a database stack (if you have a more complex setup with redundancy and disaster recovery, perhaps).

You only use one stack at a time!

It’s important to note that, since the stack configuration is what holds things like the Azure subscription ID and tenant ID, we work with a single stack at a time and deploy our resources to a specific stack at a time. Pulumi takes the subscription and tenant from our Azure CLI login if we don’t put them in the stack config, which is why it worked before we had our stack config files.

Previously in this series, when we’ve run commands in the CLI like pulumi preview and pulumi up, we’ve actually been running those commands specifically on the dev stack. When you run pulumi stack ls, you can see which one is the active stack by whichever one has a asterisk * next to it.

The takeaway here is that Pulumi commands operate on the active stack.

You can change the active stack by running pulumi stack select <stack name>.

Stack outputs

This whole series, you may have been wondering what that Dictionary being returned at the bottom of our Program.cs is all about… That’s a stack output, and will be the topic of the next post in this series, so hang tight!

Bonus: deploying to different subscriptions within the same stack using Providers

This is a good chance to talk about how things work under the covers a bit and solve a potential problem you may run into.

You may have a use case where you’d like to access multiple Azure subscriptions within the same stack. For example, you may need to access a resource owned by another team that lives in a different subscription. Things like this are possible by creating Providers in your C# code.

We’ve already been using a provider in Pulumi, but not explicitly. If you remember way back from the first Pulumi post in this series, a resource provider in Pulumi is what actually handles communicating with the cloud service to CRUD the resources you request. In our case, we’ve been use the Azure Native provider. Like the Pulumi docs say, Pulumi creates a default provider for us behind the scenes and gives it some configuration (which we can override parts of, like we did earlier in this post).

However, we can also create Provider objects explicitly in our code, configure them however we want, then tell our resources to use a specific Provider.

For instance, here’s how to create two Providers, each for a different subscription, and put resources into both of them:

// As examples...
// 1) You might want to manage resources in multiple subscriptions at once...
var devWestProvider = new Pulumi.AzureNative.Provider("Dev-WestUS", new()
{
    Location = "EastUS",
    SubscriptionId = "11111111-1111-1111-1111-111111111111"
});
var stagingCentralProvider = new Pulumi.AzureNative.Provider("Staging-CentralUS", new()
{
    Location = "WestUS",
    SubscriptionId = "22222222-2222-2222-2222-222222222222"
});

var devResourceGroup = new ResourceGroup("devResourceGroup", options: new Pulumi.CustomResourceOptions()
{
    Provider = devWestProvider
});

var stagingResourceGroup = new ResourceGroup("stagingResourceGroup", options: new Pulumi.CustomResourceOptions()
{
    Provider = stagingCentralProvider
});

// 2) ...or maybe read existing resources from other subscriptions you don't own
// Pulumi won't manage these resources! You'll just have access to them in your stack
var subscriptionId = "33333333-3333-3333-3333-333333333333";
var resourceGroupName = "other-teams-rg";
var keyVaultName = "other-teams-vault";

var otherTeamsAccountProvider = new Pulumi.AzureNative.Provider("some-other-account", new()
{
    Location = "EastUS",
    SubscriptionId = subscriptionId
    // When accessing a subscription you don't own, you may need to specify the authentication info
    // eg. ClientId, ClientSecret, UseMsi, UseOidc, etc.
});

// You can also use the command, Pulumi.AzureNative.KeyVault.GetVault.Invoke
var keyVault = Pulumi.AzureNative.KeyVault.Vault.Get(
    "other-team-vault",
    $"/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.KeyVault/vaults/{keyVaultName}",
    new() { Provider = otherTeamsAccountProvider }
);

This way, we can access multiple subscriptions in a single stack, whether we own the resources or not. Keep in mind that this shouldn’t be your typical way of managing resources, but the option is there if you need it.

Github example

You can find a full working example of this at the following Github repository: https://github.com/danielwarddev/PulumiCSharp
